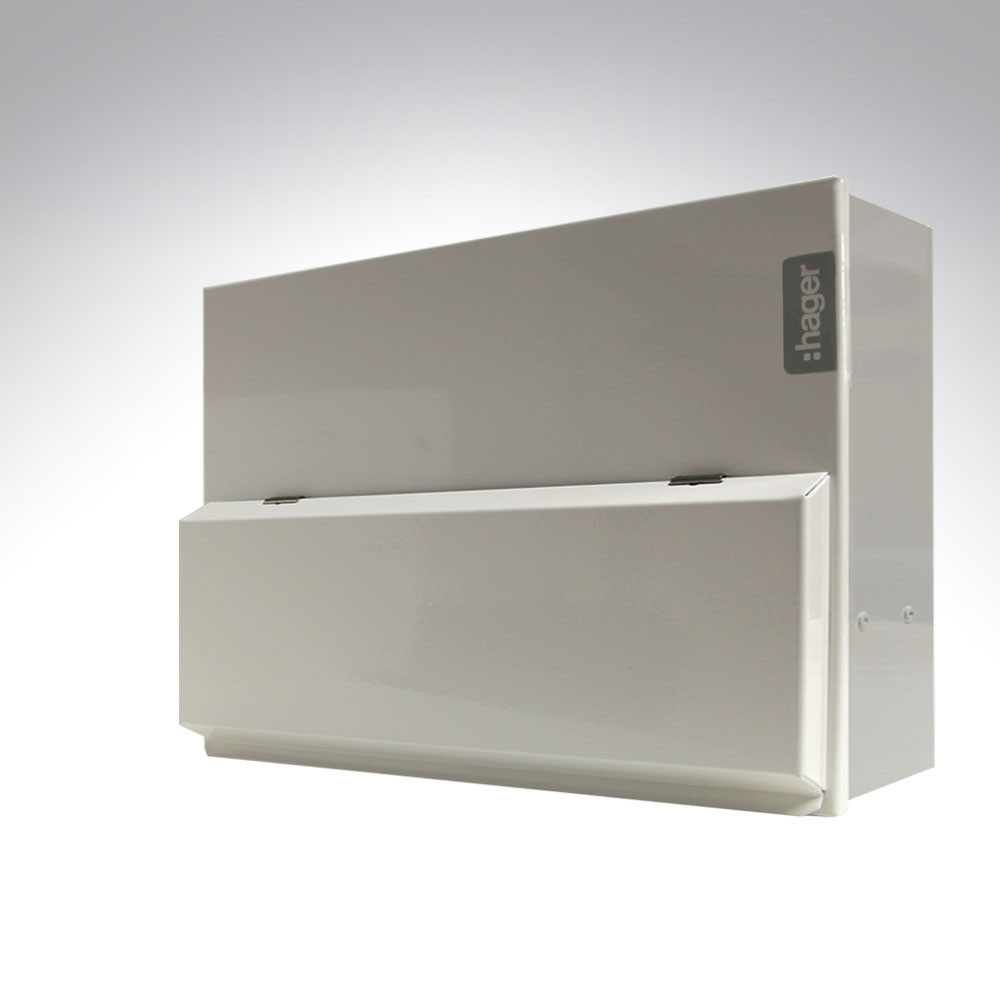

Hager 6 + 6 Dual 100A RCD Split Load Metal Clad Consumer Unit
Part Code: VML966H
Stock Code: 2476-2394
6 + 6 way split load consumer unit
Supplied with 2 x 100A 30mA Type A RCDs and 1 x 100A DP isolator
Design 10 consumer units come with top, bottom, rear knockouts and a meter tail cable entry plate
Comes with a full complement of earth and neutral terminals along with marking labels, busbar, instructions, rear cable protector plate and meter tail clamp
Design 10 board has ample cable space available even when RCBOs are fitted. The top mounted terminal rail makes the wiring of the neutral and earth connections neat and simple
Conforms to BS EN 61439-3 Including Annex ZB
Specification
Board Configuration
6 + 6
Cable Entry
Selection of Knockouts
Colour
White
Current Rating
100A
Depth
100mm
Dimensions
(H)246 mm x (W)406 mm x (D)100 mm
Door Type
Top Hinged
Guarantee
2 Years
Height
246mm
Incoming Device
100A Isolator
Incoming Terminal Capacity
50 mm²
Knockouts
Square
Material
Steel
Mounting
Surface
Number of Modules
18
Number of Outgoing Ways
12
Packaging Types
Each
Product Range
Design 10
Rcd Rating
100A
Standards
BS EN 61439-3
Unspsc
39121110
Voltage Rating
230V
Weight
4.85000kg
Width
406mm
