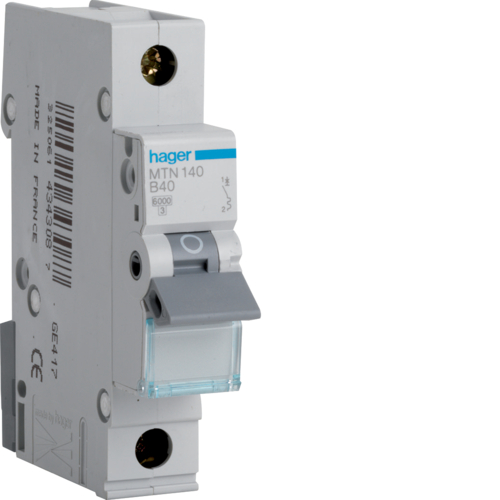

Hager 40A Single Pole 6kA Type B MCB
Part Code: MTN140

Type B tripping characteristics complies with BS EN 60898.
Calibration temperature 30°C
Breaking capacity: 6kA
Connection capacity: Rigid conductor 25mm2, Flexible conductor 16mm2
Specification
Current Rating
40A
Dimensions
(W)17.5 mm
Guarantee
2 Years
Incoming Terminal Capacity
25
Mounting
Din Rail
Number of Modules
1
Number of Poles
Single Pole
Outgoing Terminal Capacity
25
Packaging Types
Each
Product Range
MCBs
Short Circuit Rating
6kA
Standards
BS EN 60898
Tripping Characteristics
B Curve
Unspsc
39121603
Voltage Rating
230V
Weight
0.12400kg
Width
17.5mm
